DATA SHEETS
AREA LIGHTING LUMINAIRES / TETRA PRV-5 (FIXED)
TETRA PRV-5 (FIXED)
APPLICATION
LED high-performance floodlights with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
Floodlights made of aluminium die cast,
Galvanized steel fittings.
Clear 5mm safety glass
Silicon rubber gasket
Mounting bracket made of steel with
electrostatic powder coating.
Lens angle 8°-15°-22°-30°-60°-90°
Colour standard MT-X6-23
optional RAL codes.
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,40 m²
Weight: 32,5 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.

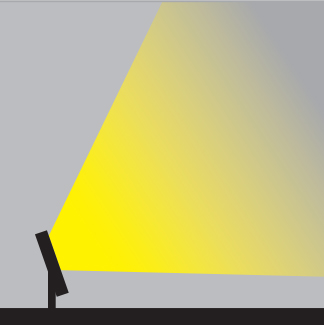

- Conformity mark.LIGHT DISTRIBUTION

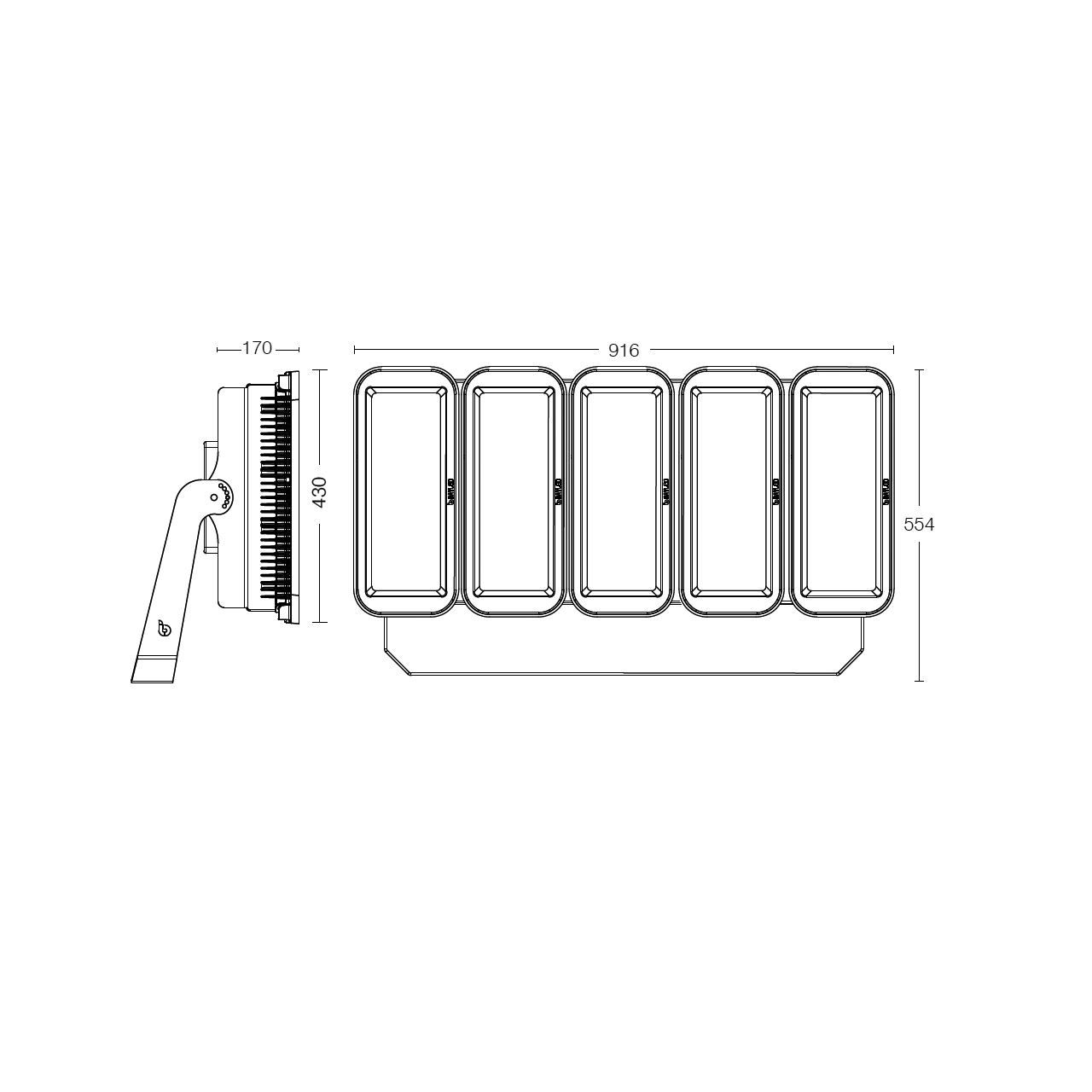

TECHNICAL DRAWING
PURCHASE ORDER TABLE
1440 LED - MID POWER LED / EXTRA HIGH LUMEN OUTPUT (Beam angle options: 22°-30°-60°-90°)
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
45-16-375-1440-XX-X
375W
62070lm - 63855lm
3000K-4000K
45-16-500-1440-XX-X
500W
80360lm - 82765lm
3000K-4000K
45-16-625-1440-XX-X
625W
97255lm - 100045lm
3000K-4000K
240 LED - HIGH POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 8°-15°-25°-40°-60°-10x45°-30x60°)
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
45-16-675-240-XX-X
675W
92595lm
6500K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

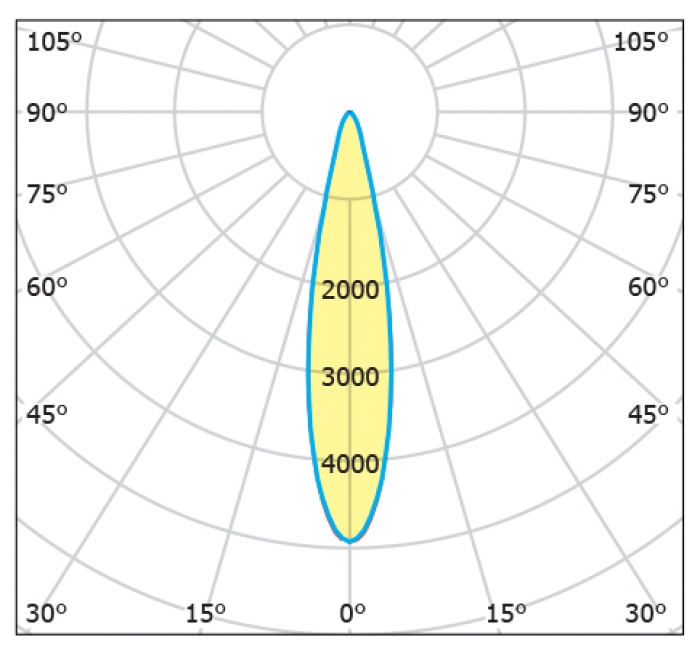

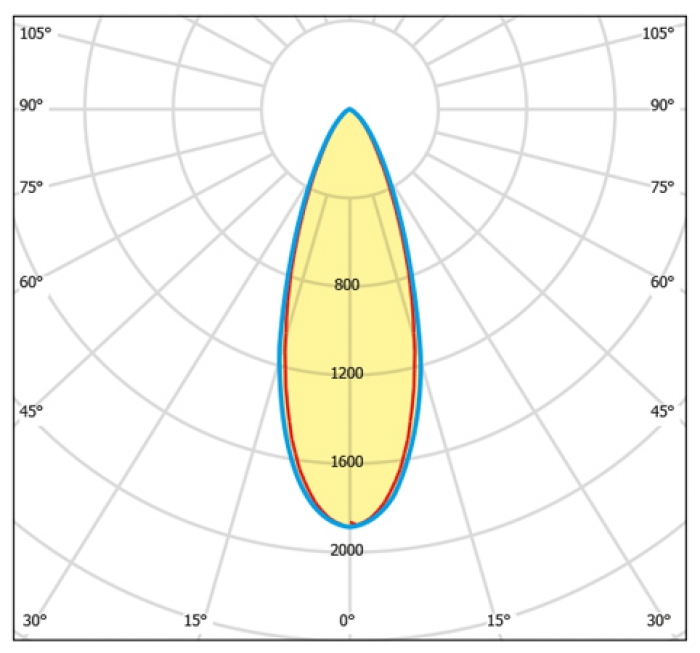

LIGHT CURVES
8°
15°
22°
30°
60°
90°
