FLOODLIGHTS / TETRA PRV-5 (MOVABLE)

TETRA PRV-5 (MOVABLE) TETRA PRV-5 (MOVABLE) TETRA PRV-5 (MOVABLE) TETRA PRV-5 (MOVABLE)

Product Description

Housing material Aluminium die-cast
Lens material PMMA
Light distribution 8°-15°-30°-60°-90°-30°x96°
Input Voltage 100-305 V AC
Power factor (min.) 0.92
Dimmable (optional) 1-10V, DALI
Protection class IP66
Impact protection   IK09
Net weight  35 kg
Certificate EN 60598, CE

LIGHT DISTRIBUTION

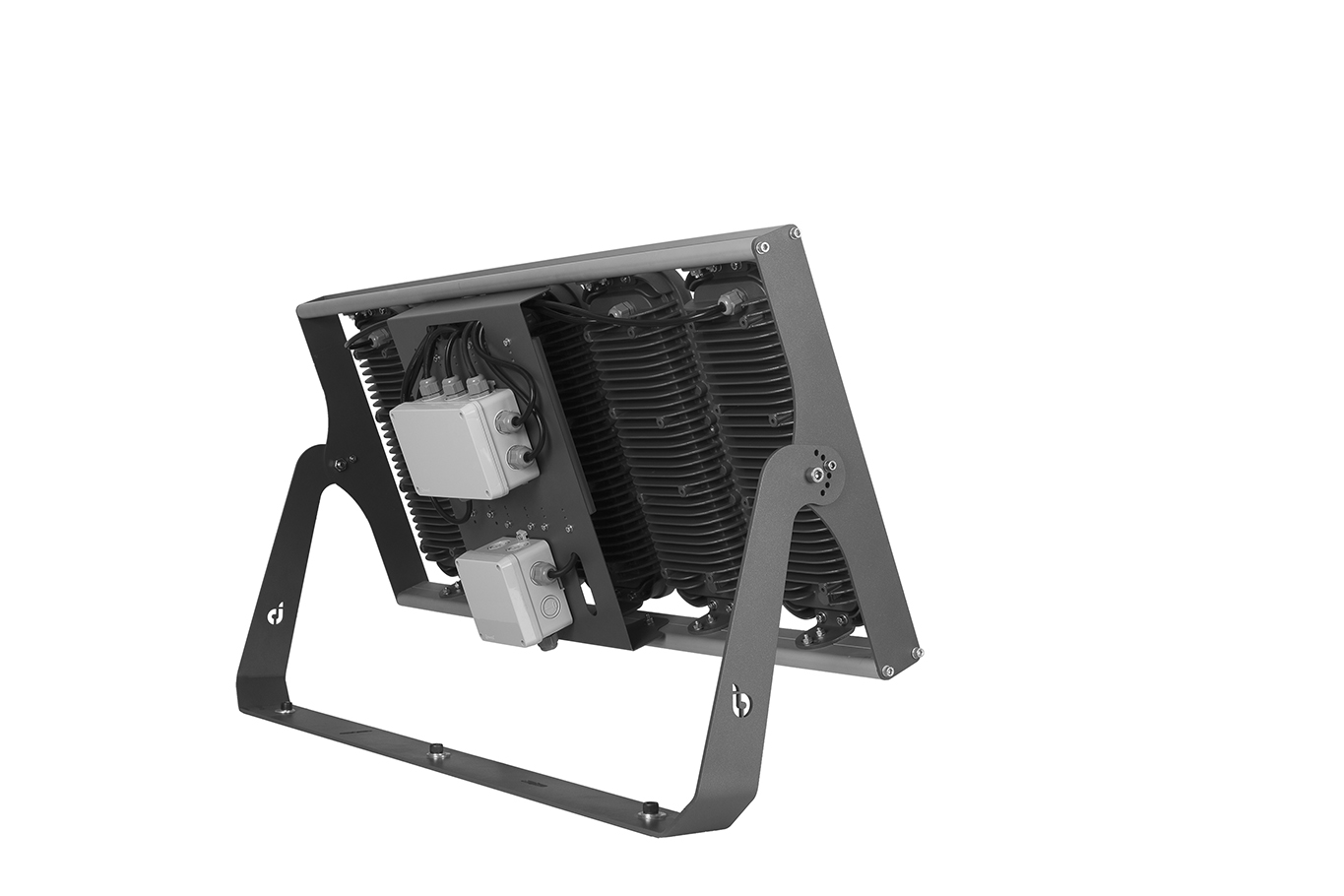

TETRA PRV-5 (MOVABLE)

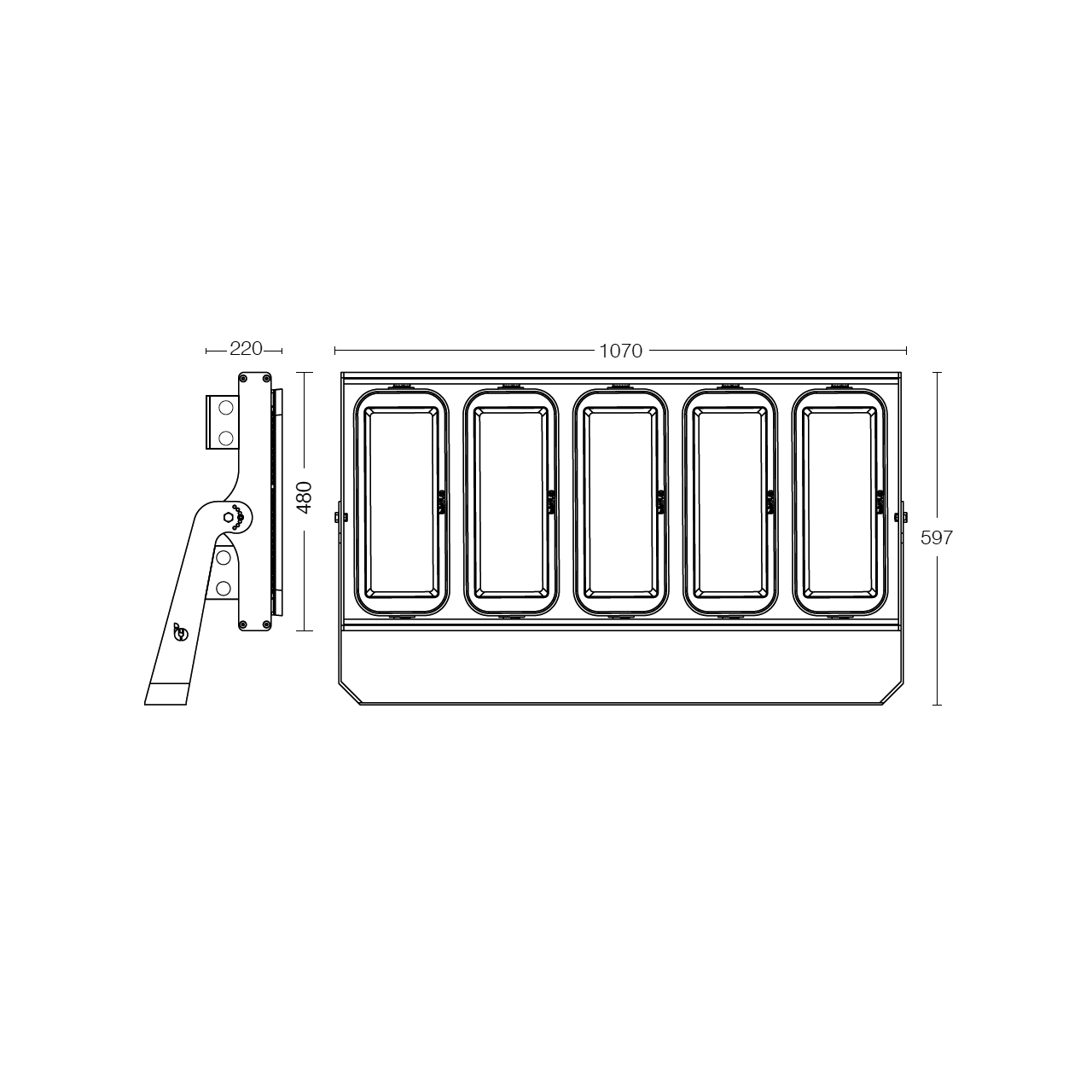

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
640 LED - MID POWER LED / STANDART LUMEN OUTPUT (Beam angle options: 15°-40°-60°-90°-30°x96°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-16-450-640-XX-X
450W
62045lm - 65290lm
3000K-4000K

45-16-575-640-XX-X
575W
74851lm - 78765lm
3000K-4000K

960 LED - MID POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 30°-60°-90°-143°x50°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-16-375-960-XX-X
375W
59195lm - 60895lm
3000K-4000K

45-16-500-960-XX-X
500W
76645lm - 78845lm
3000K-4000K

1440 LED - MID POWER LED / EXTRA HIGH LUMEN OUTPUT (Beam angle options: 22°-30°-60°-90°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-24-375-1440-XX-X
375W
62070lm - 63855lm
3000K-4000K

45-24-500-1440-XX-X
500W
80360lm - 82765lm
3000K-4000K

45-24-625-1440-XX-X
625W
97255lm - 100045lm
3000K-4000K

240 LED - HIGH POWER LED / HIGH LUMEN OUTPUT (Beam angle options: 8°-15°-25°-40°-60°-10x45°-30x60°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

45-24-675-240-XX-X
675W
92595lm
6500K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

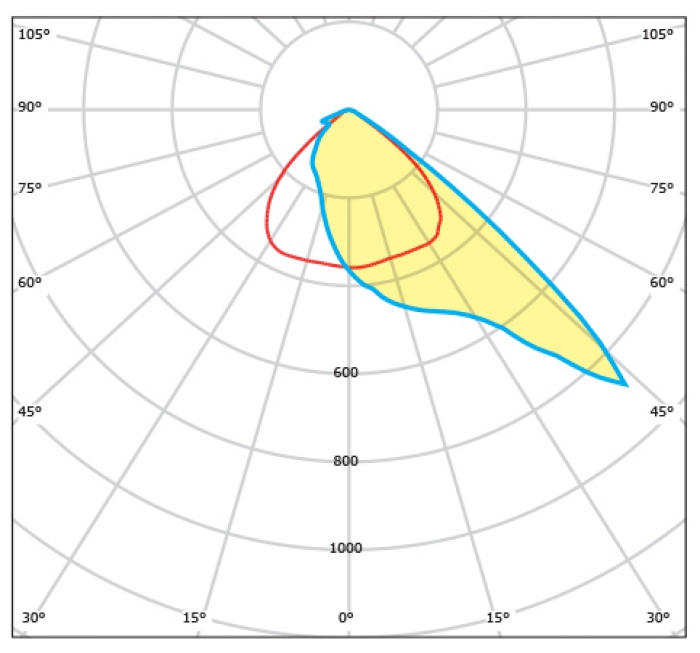

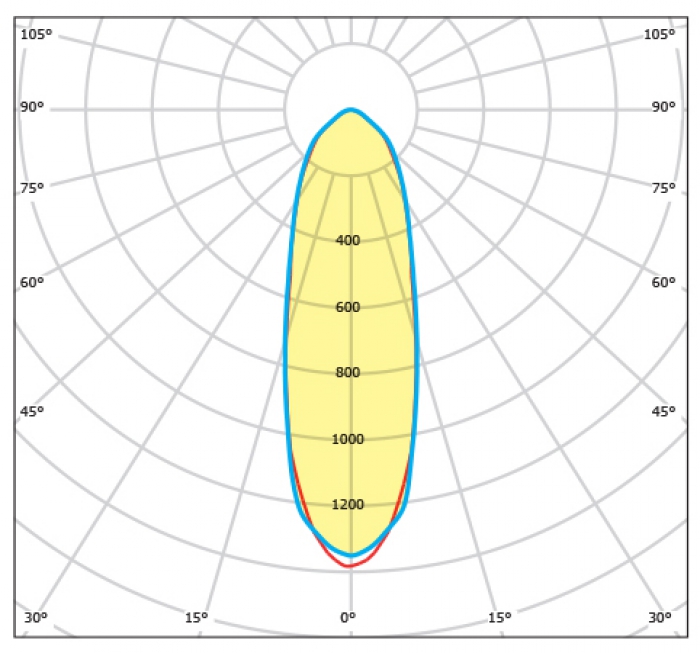

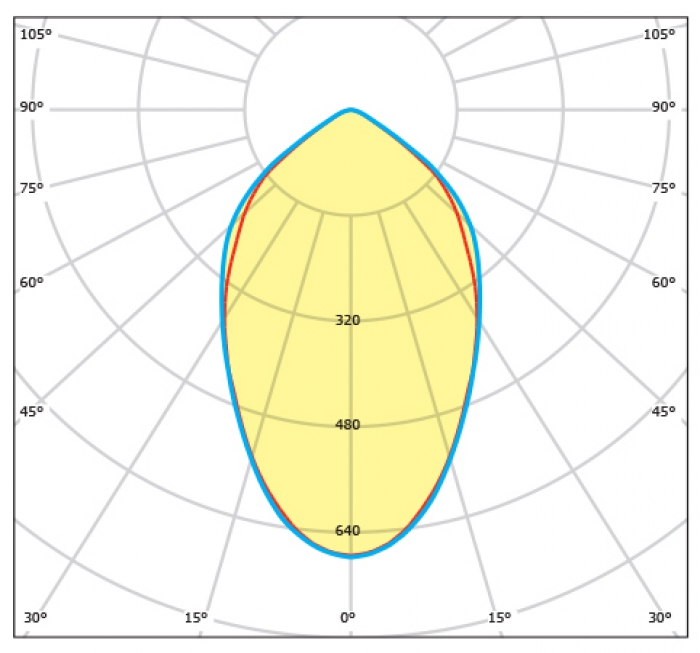

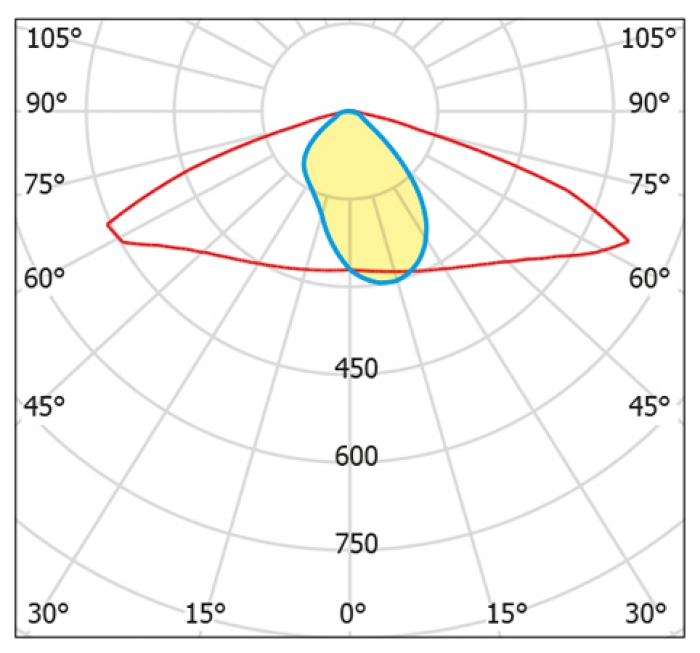

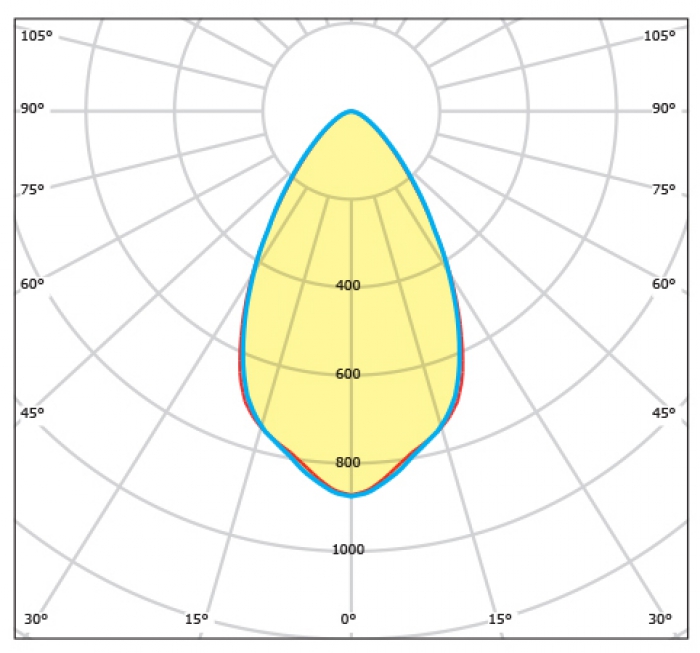

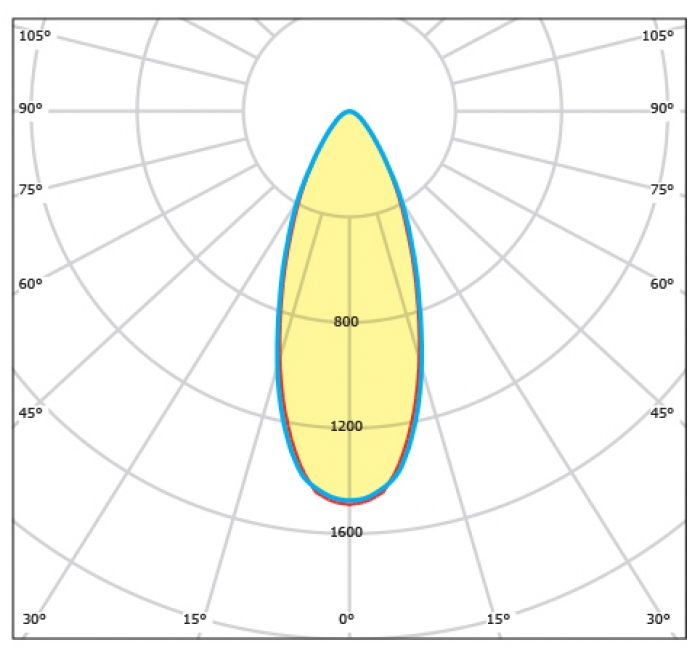

LIGHT CURVES
30°
40°
60°
60°
90°
143x50°
30x96°
