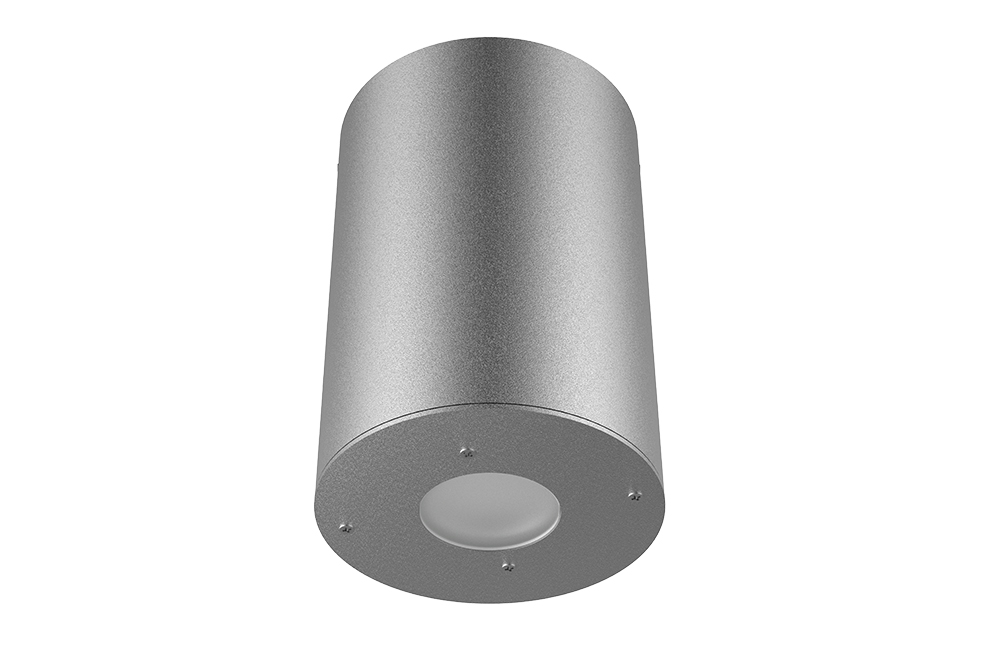

TINDRA ROUND

APPLICATION
LED high-performance downlight with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
Made of aluminium die cast and extrusion
Aluminium and stainless steel.
Clear 6mm safety glass
Silicon base seal gasket
Electrostatic powder coating.
Lens angle 25°- 40°- 60°- 80°
Colour standard 7040
Optional RAL codes.
LED power supply unit
Input 100 – 240V AC 50 / 60 Hz
Power factor > 87% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP67
Impact strenght IK09
Operation temperature -25°C / +55°C
Weight: 1,60 kg
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.

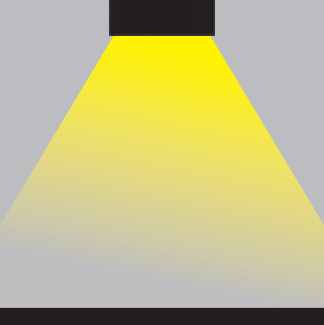

IŞIK DAĞITIMI
TINDRA ROUND

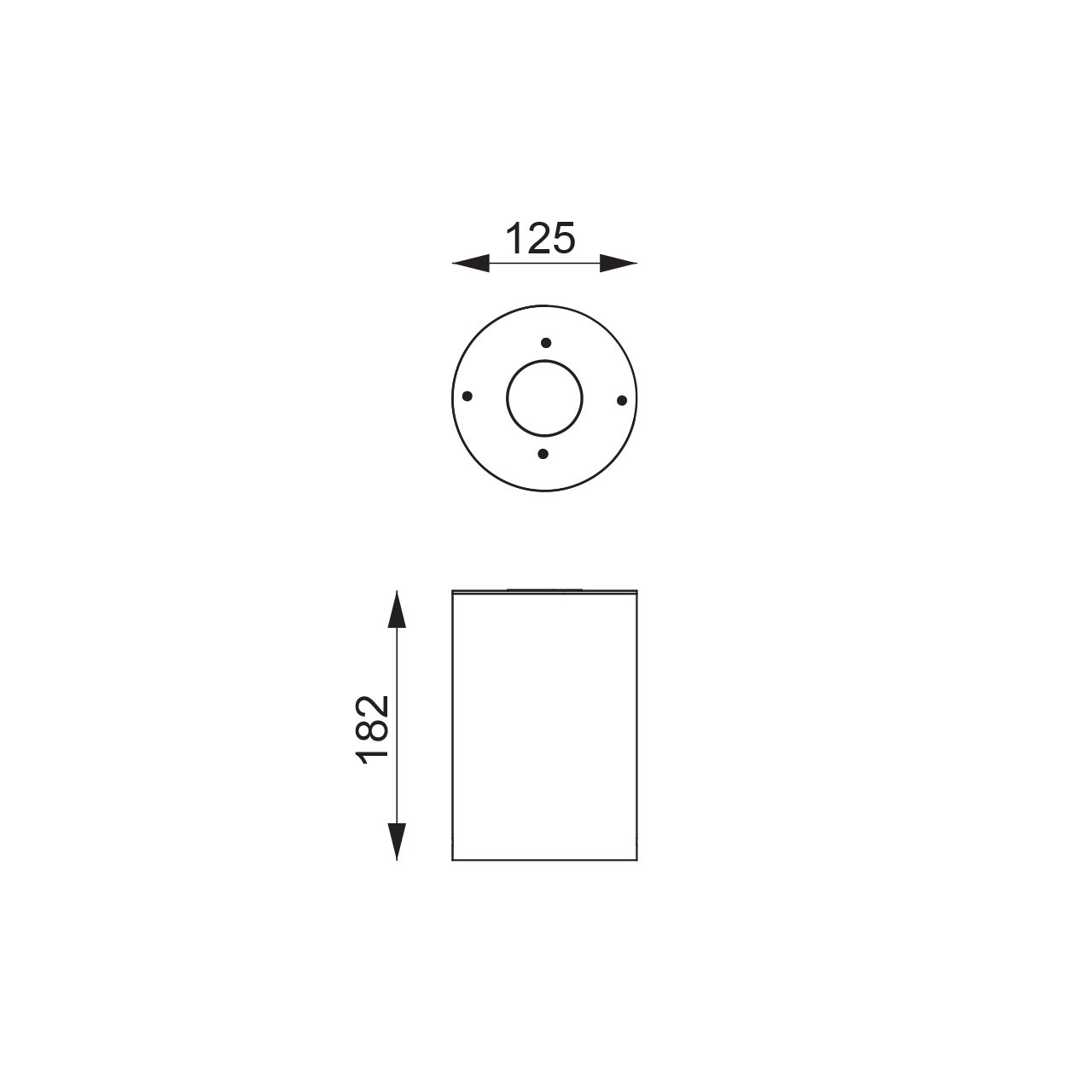

TEKNİK ÇİZİM
İNDİRMELER
TEKNİK DÖKÜMANLAR
KATALOG SAYFALARI
LDT DOSYALARI
TEKNİK ÇİZİM
MONTAJ KILAVUZLARI
TEST RAPORLARI
UYGULAMALAR
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ

14-03-04-03-XX-X
4W
205lm - 220lm
3000K-4000K
XX: Lens açısı , X: Led rengi

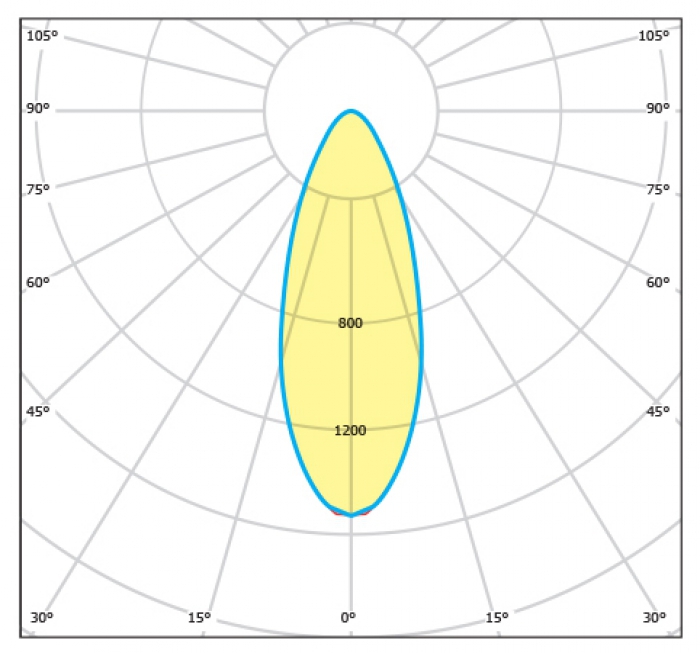

IŞIK EĞRİLERİ
25°
ROHS NO UV NO IR LONG LIFE LED IP67 IK09 Geri Dönüşüm Energy Saver Dekoratif Damla CO2 Class I Çekiç CE Aşağı ışık veriyor
