TEKNİK DÖKÜMANLAR
KENTSEL AYDINLATMA / TORRE
TORRE
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium,
Body pole aluminium
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 90-264V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class II
Protection class IP65
Impact strenght IK10
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

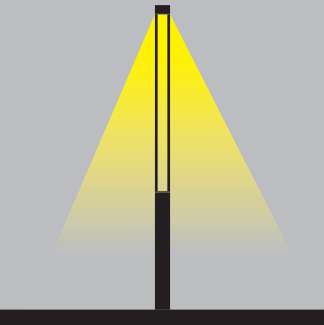

- Conformity mark.IŞIK DAĞITIMI

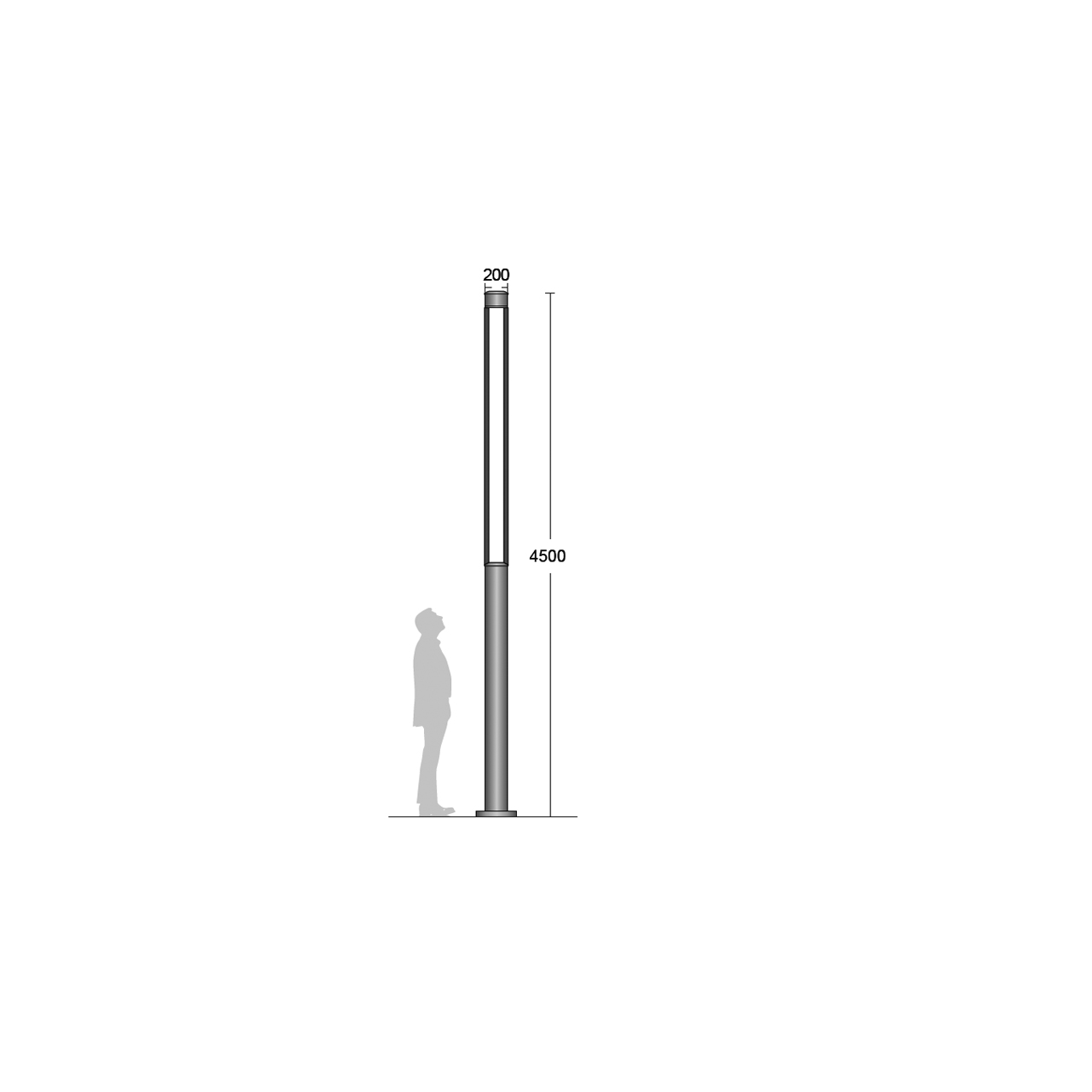

TEKNİK ÇİZİM
SATIN ALMA SİPARİŞ TABLOSU
ÜRÜN KODU
GÜÇ
IŞIK GÜCÜ
IŞIK RENGİ
MODEL
60-57-50-X
50W
6169lm - 6492lm
3000K-4000K
LED
X: Led Rengi

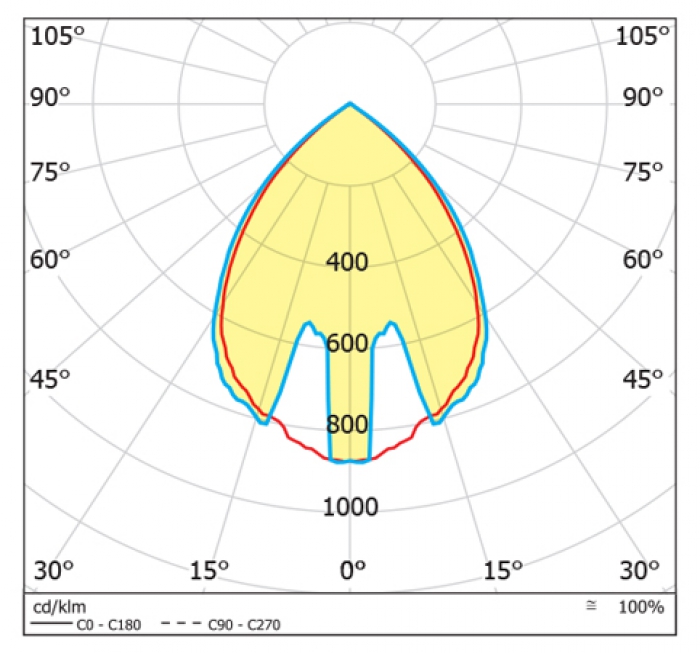

IŞIK EĞRİLERİ
