TUNNEL LIGHTING LUMINAIRES / TETRA HIGH BAY HBL-2

TETRA HIGH BAY HBL-2 TETRA HIGH BAY HBL-2

APPLICATION
LED high-performance High-Bays with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
High-Bays made of aluminium die cast,
Galvanized steel fittings.
Clear 5mm safety glass
Silicon rubber gasket
Mounting bracket made of steel with
Electrostatic powder coating.
Lens angle 8°-15°-30°-40°-60°-90°-30°x96°
Colour standard MT-X6-23
OptionalRAL codes.
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,16 m²
Weight: 12,5 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
  - Conformity mark.

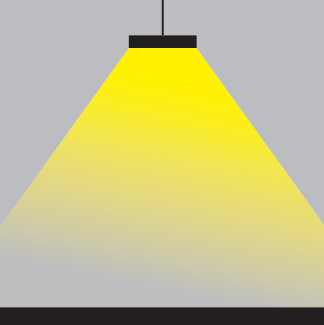

LIGHT DISTRIBUTION
TETRA HIGH BAY HBL-2

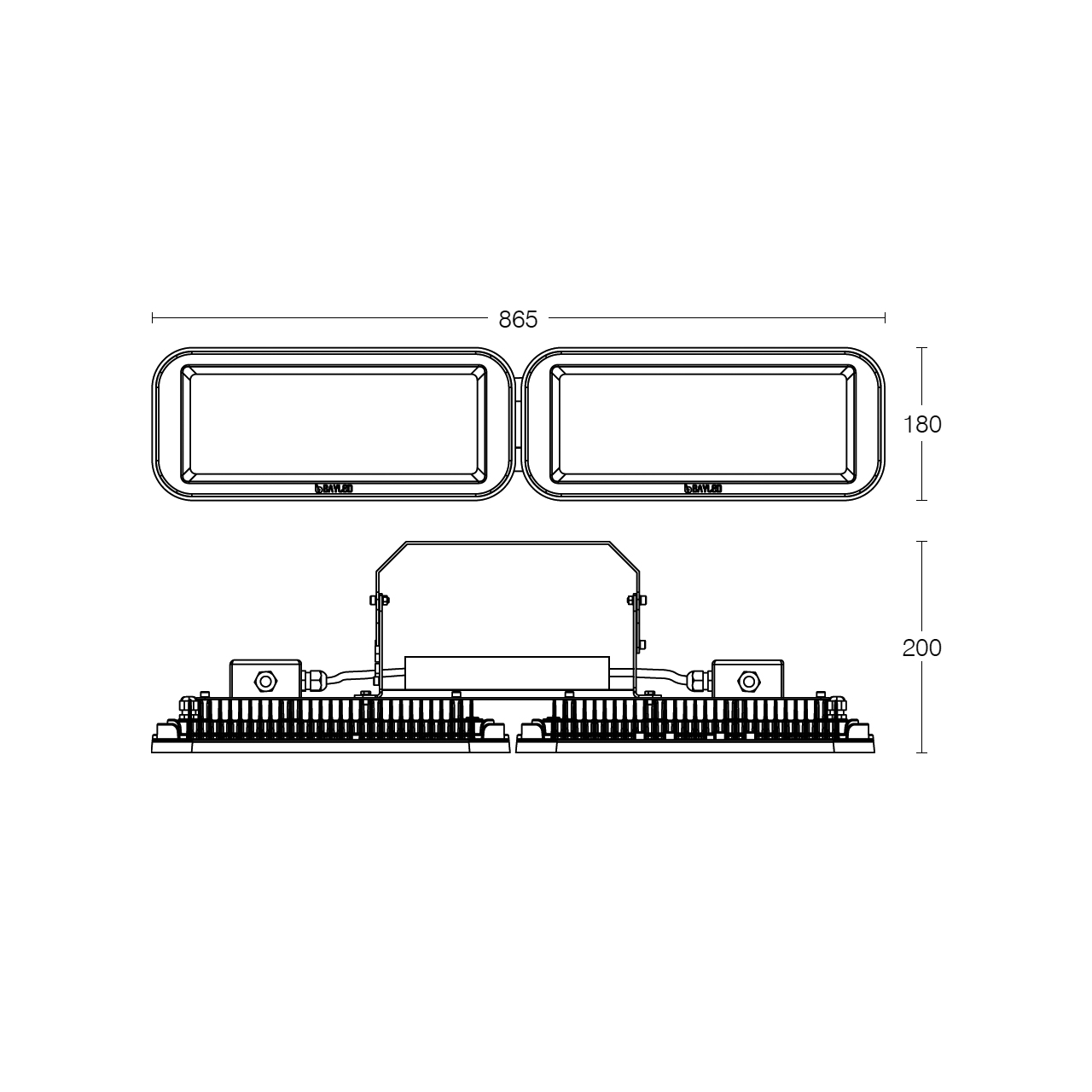

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
256 LED - MID POWER LED / STANDART LUMEN OUTPUT (Beam angle options: 15°-40°-60°-90°-30x96°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-04-190-256-XX-X
190W
26197lm - 27567lm
3000K-4000K

80-04-230-256-XX-X
230W
29940lm - 31506lm
3000K-4000K

576 LED - MID POWER LED / EXTRA HIGH LUMEN OUTPUT (Beam angle options: 15°-30°-60°-90°)

CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

80-04-150-576-XX-X
150W
24828lm - 25542lm
3000K-4000K

80-04-200-576-XX-X
200W
32144lm - 33106lm
3000K-4000K

80-04-250-576-XX-X
250W
38902lm - 40018lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

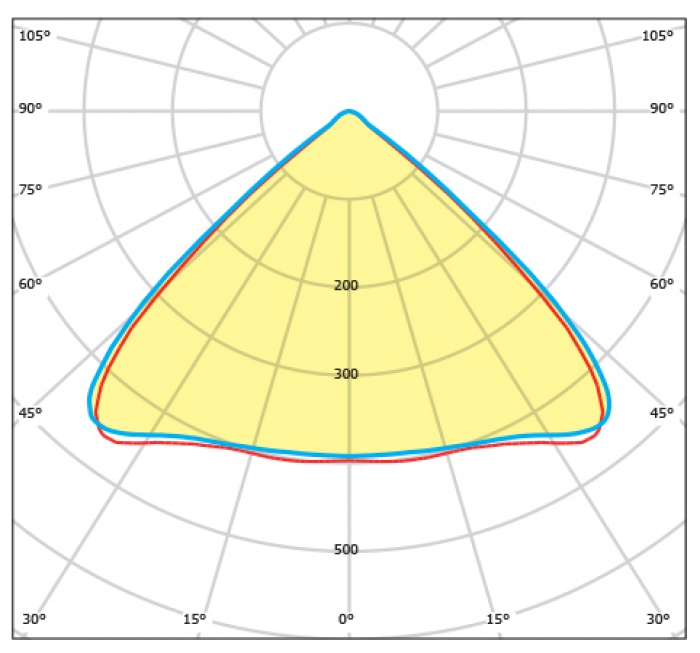

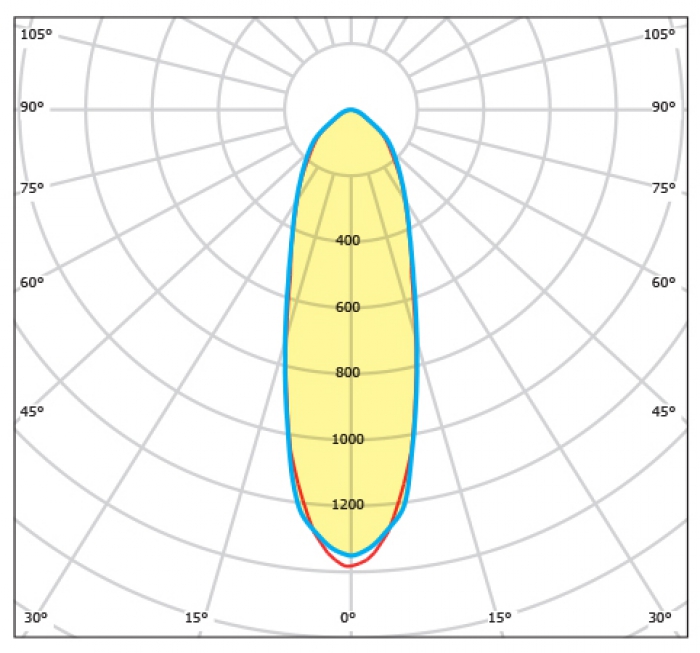

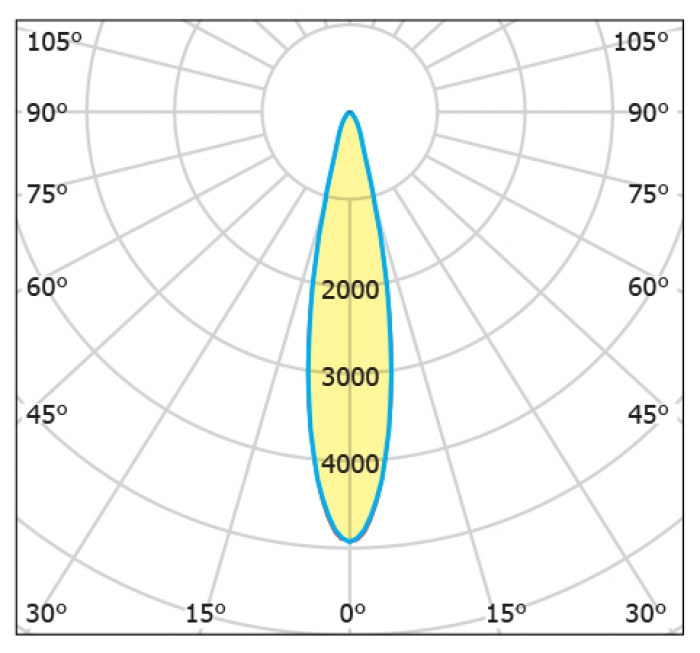

LIGHT CURVES
15°
30°
40°
60°
90°
30x96°
