DATA SHEETS
URBAN LIGHTING LUMINAIRES / BLOCCO
BLOCCO
APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION
Urban lights made of aluminium,
Body pole aluminium profile
Diffuser5mm policarbon glass
Silicon rubber gasket
Mounting detail anchor system
Eliptical shaped asymmetrical lenses
All RAL Codes or
Special architectural paints
LED power supply unit
Input 90 –264V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class II
Protection class IP65
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.

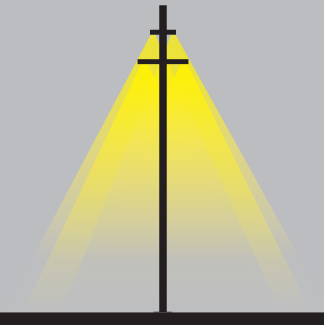

- Conformity mark.LIGHT DISTRIBUTION

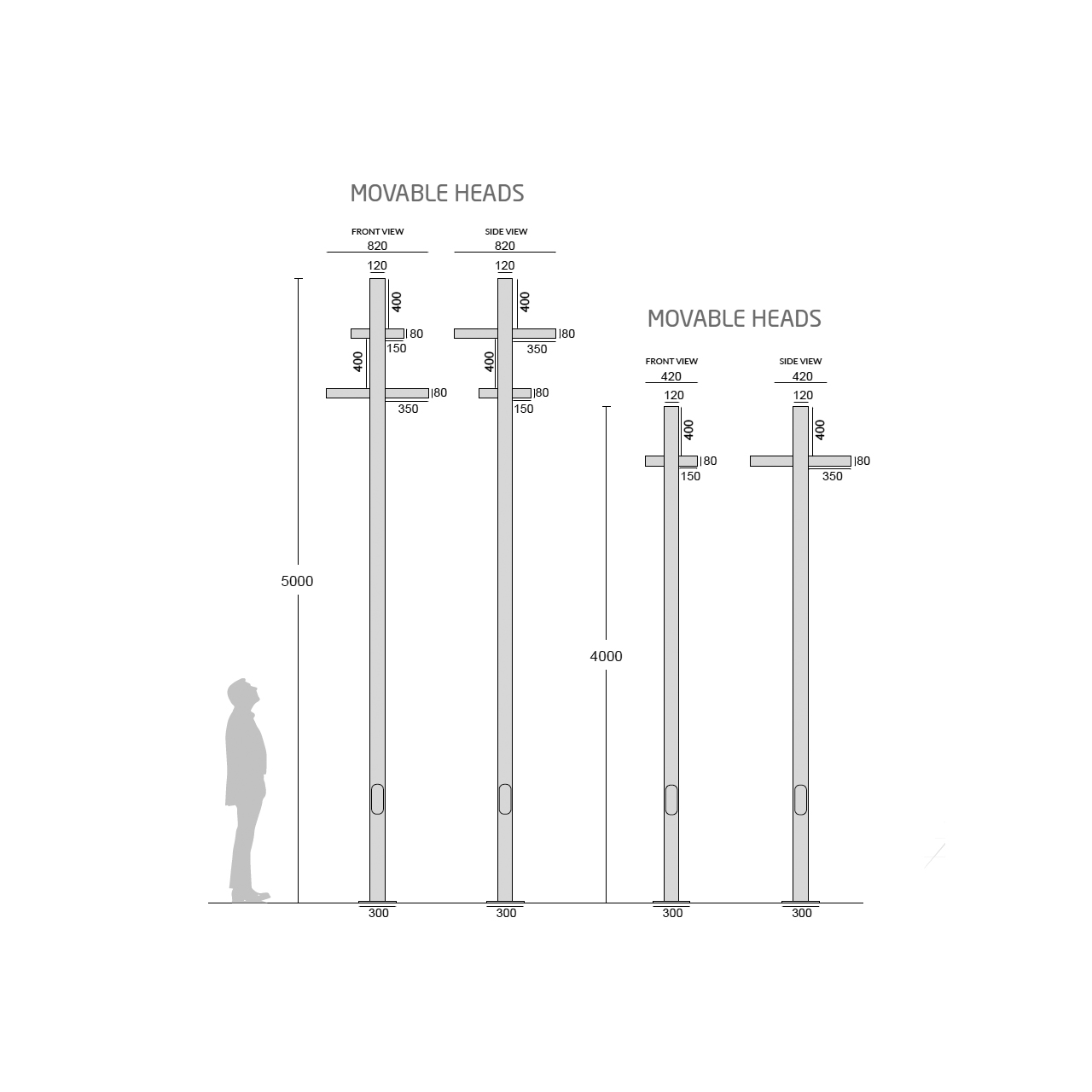

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMPERATURE
TYPE
60-58-80-X
80W
9871lm - 10387lm
3000K-4000K
LED
X: Led Color
Fixture watt which is given for single head
Fixture watt which is given for single head
LIGHT CURVES
