COLUMN D200

APPLICATION
LED high-performance urban lights with
Wide Beam light distribution

PRODUCT DESCRIPTION

Body pole manufactured from aluminium

Diffuser 3mm PMMA
Optics Eliptical Shaped asymmetrical lenses
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 – 305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
CE certificate.
  - Conformity mark.

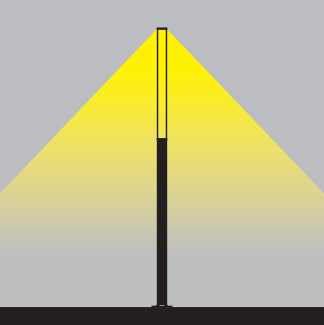

LIGHT DISTRIBUTION
COLUMN D200

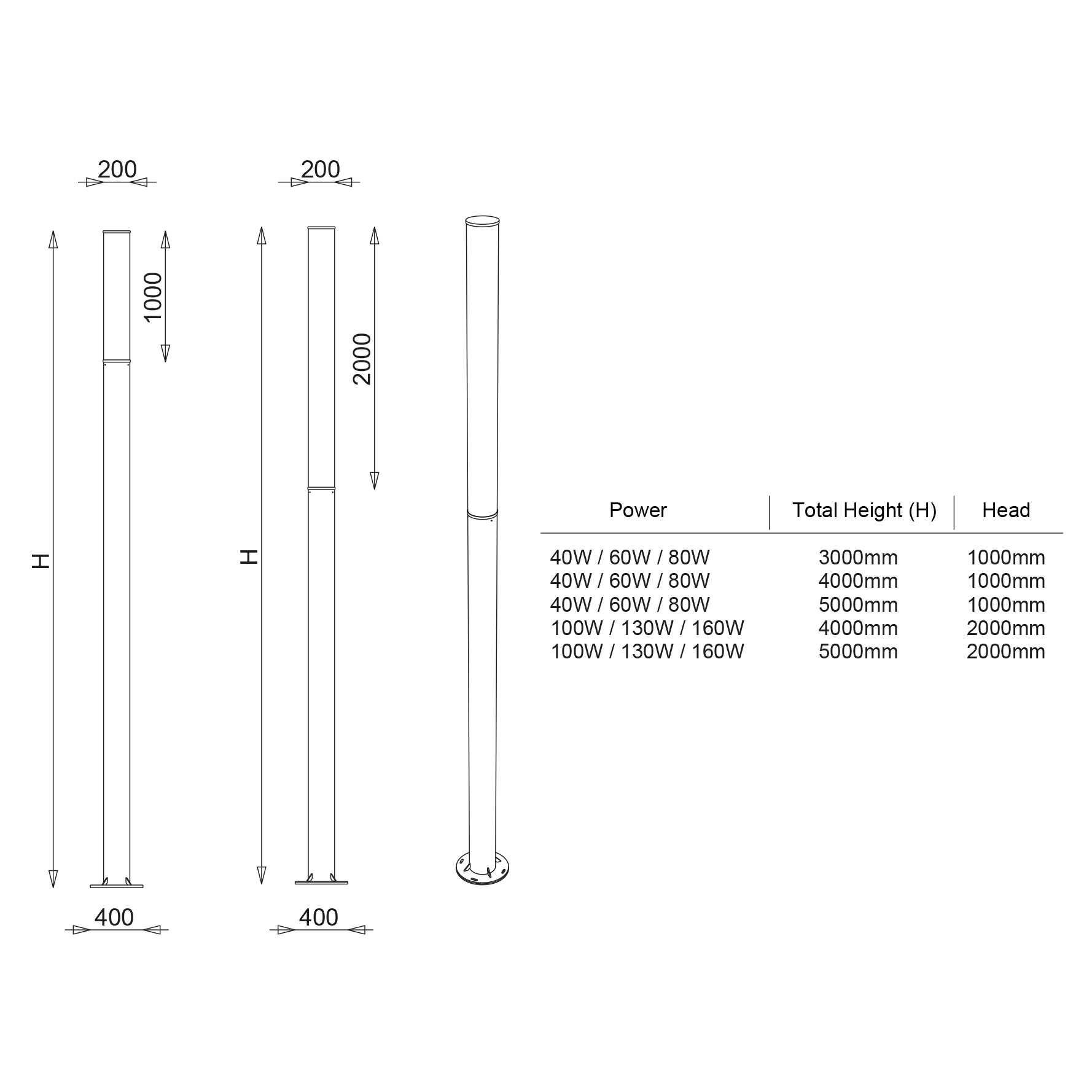

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
MANUAL SHEETS
TEST REPORTS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUM. LUMINOUS FLUX
COLOR TEMPERATURE
POLE LENGTH

60-74-020-40-384-03-120-X
40W
4796lm - 4953lm
3000K-4000K
3m
60-74-020-40-384-04-120-X
40W
4796lm - 4953lm
3000K-4000K
4m
60-74-020-40-384-05-120-X
40W
4796lm - 4953lm
3000K-4000K
5m
60-74-020-60-384-03-120-X
60W
6812lm - 7036lm
3000K-4000K
3m
60-74-020-60-384-04-120-X
60W
6812lm - 7036lm
3000K-4000K
4m
60-74-020-60-384-05-120-X
60W
6812lm - 7036lm
3000K-4000K
5m
60-74-020-80-768-03-120-X
80W
9223lm - 9525lm
3000K-4000K
3m
60-74-020-80-768-04-120-X
80W
9223lm - 9525lm
3000K-4000K
4m
60-74-020-80-768-05-120-X
80W
9223lm - 9525lm
3000K-4000K
5m
60-74-020-100-768-04-120-X
100W
11360lm - 11733lm
3000K-4000K
4m
60-74-020-100-768-05-120-X
100W
11360lm - 11733lm
3000K-4000K
5m
60-74-020-130-1536-04-120-X
130W
15233lm - 15733lm
3000K-4000K
4m
60-74-020-130-1536-05-120-X
130W
15233lm - 15733lm
3000K-4000K
5m
60-74-020-160-1536-04-120-X
160W
18446lm - 19050lm
3000K-4000K
4m
60-74-020-160-1536-05-120-X
160W
18446lm - 19050lm
3000K-4000K
5m
X: Led Color

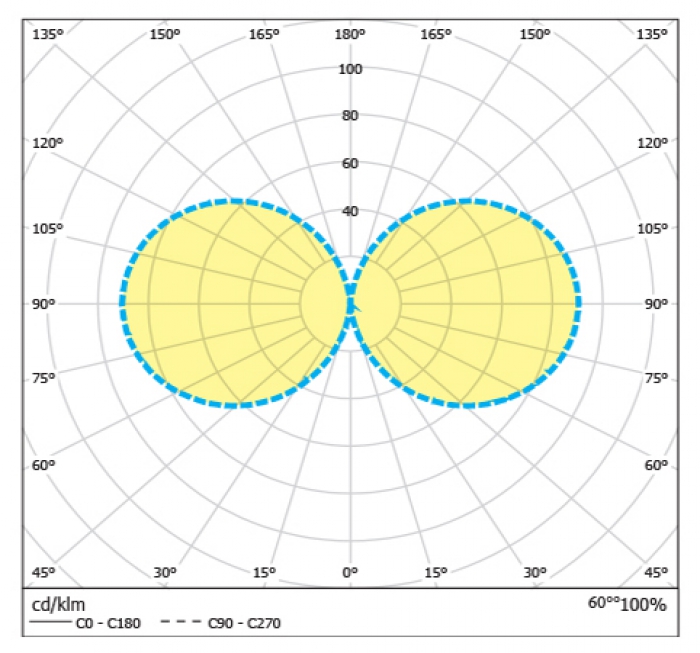

LIGHT CURVES
