URBAN LIGHTING LUMINAIRES / STAR 60
STAR 60
APPLICATION
LED high-performance urban lights with wide beam light distribution.
PRODUCT DESCRIPTION
Urban lights made of aluminium alloy,
Aluminium and stainless steel.
Clear 5mm policarbon glass
Silicon rubber gasket
Mounting bracket made of steel with
electrostatic powder coating.
Colour standard MT-X6-23
optional RAL codes.
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP65
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,18 m²
Weight: 7,3 kg
EULUMDAT files available
Complies with European standards
CE certificate.

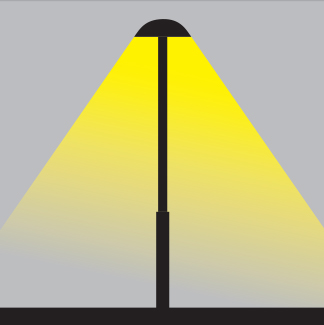

- Conformity mark.LIGHT DISTRIBUTION

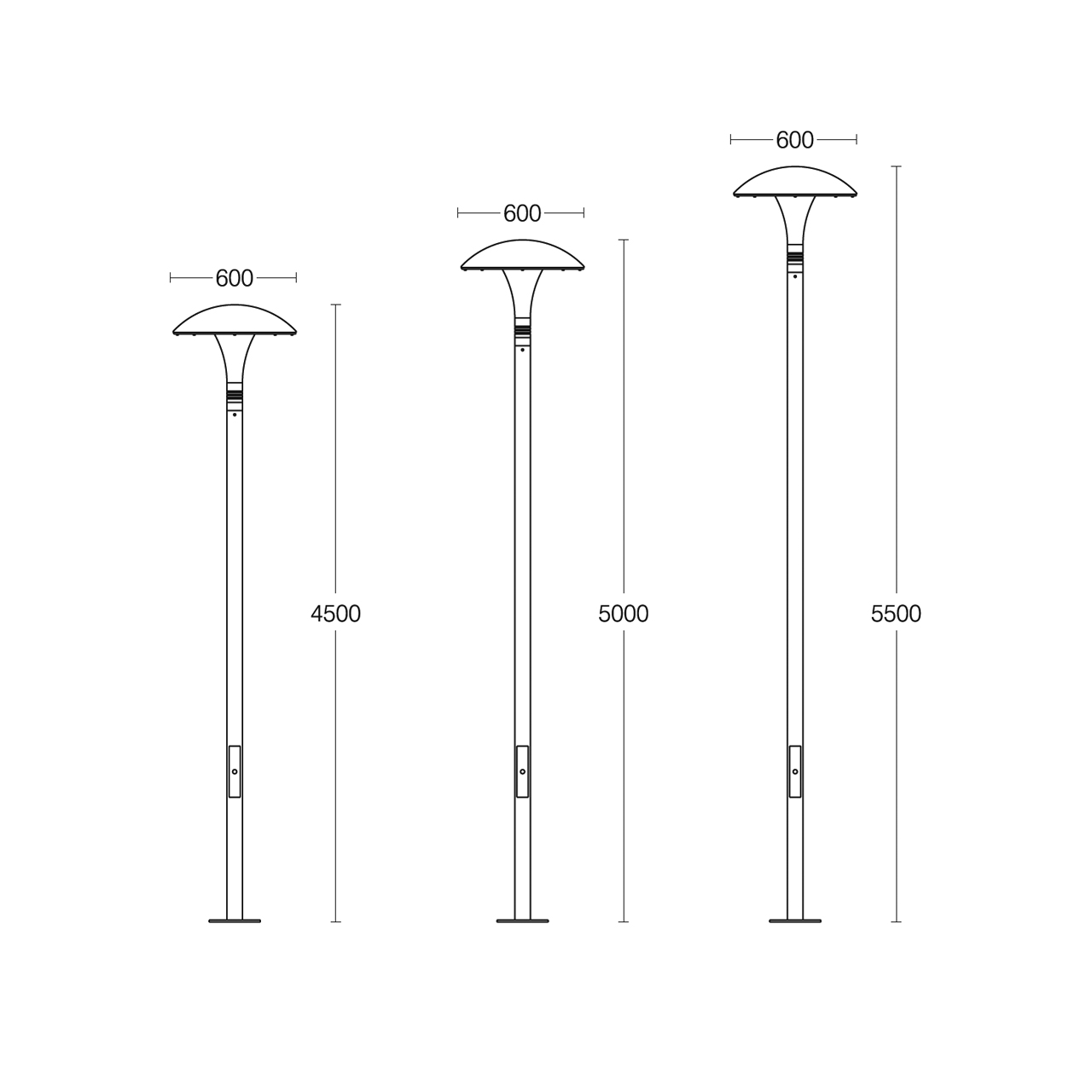

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE
60-48-50-140-001-X
50W
4158lm - 4294lm
3000K-4000K
60-48-80-140-003-X
80W
6050lm - 6249lm
3000K-4000K
XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

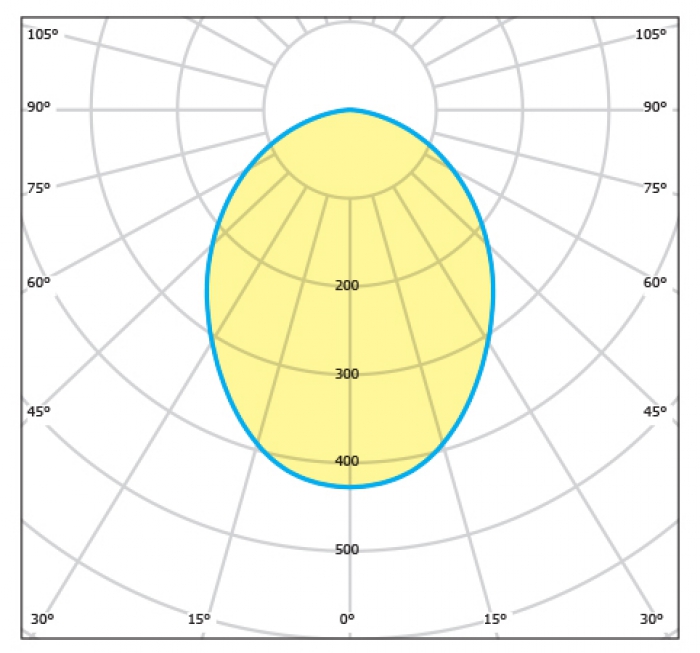

LIGHT CURVES
