WALLWASHERS / VEGA 130

VEGA 130 VEGA 130

APPLICATION
LED high-performance wallwashers with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
Wallwasher made of aluminium alloy,
Aluminium and stainless steel.
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 95°
Mounting bracket made of plastic.
Lens angle 8°- 25°- 45°- 60°- 10°x45°
Colour standard : Mat anodizied
Optional RAL codes.
LED power supply unit
Input 110 – 240V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK08
Operation temperature -25°C / +55°C
Wind catching area: 0,14 m²
Weight: 6,3 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.

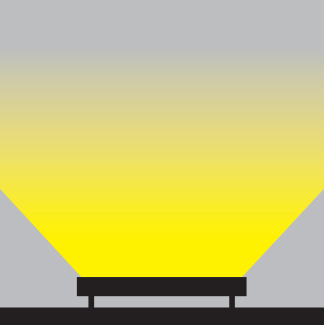

LIGHT DISTRIBUTION
VEGA 130

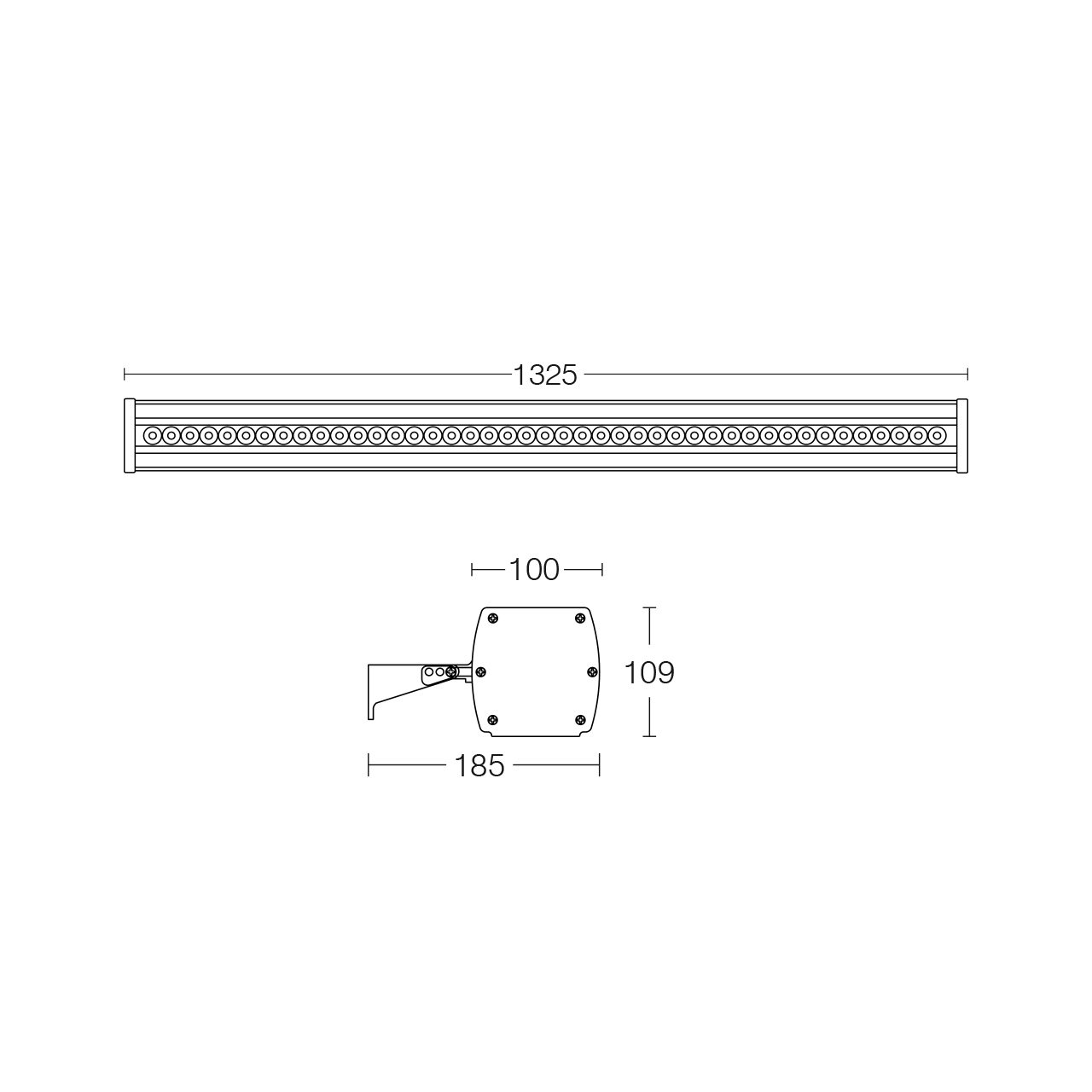

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

01-02-130-48-XX-X
48W
6684lm - 7034lm
3000K-4000K

01-02-130-96-XX-X
96W
13369lm - 14068lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

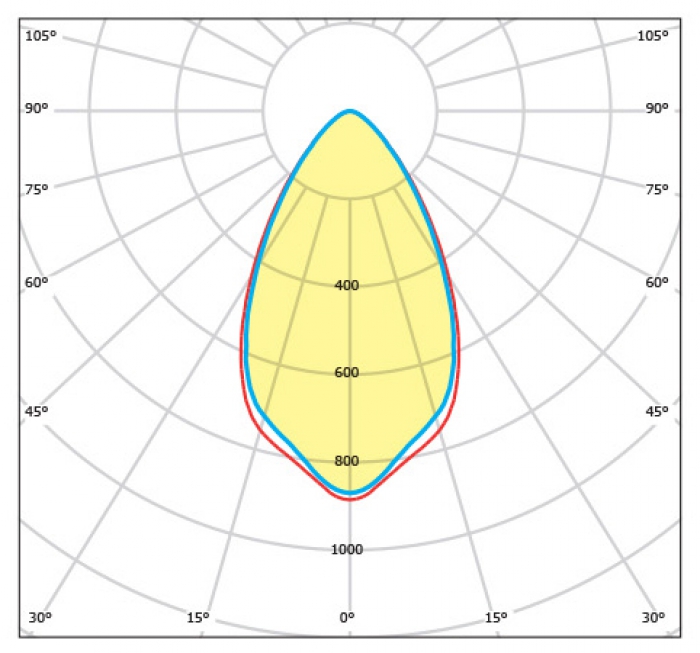

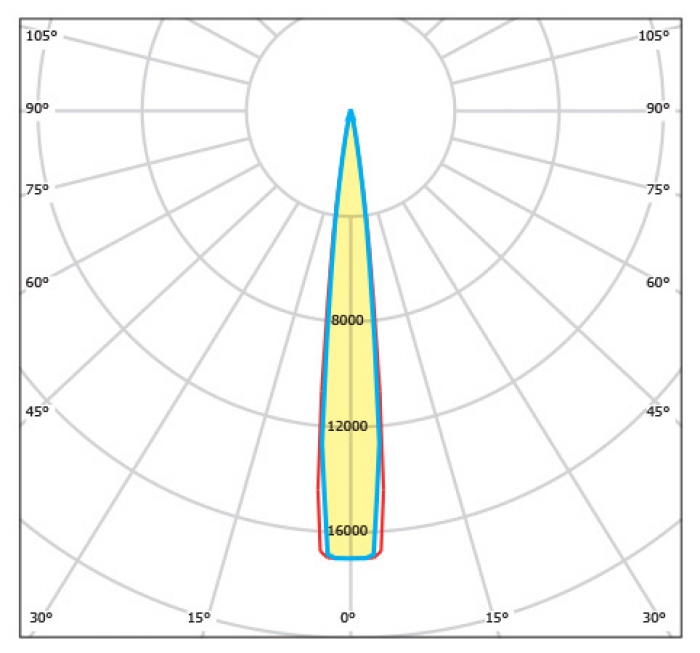

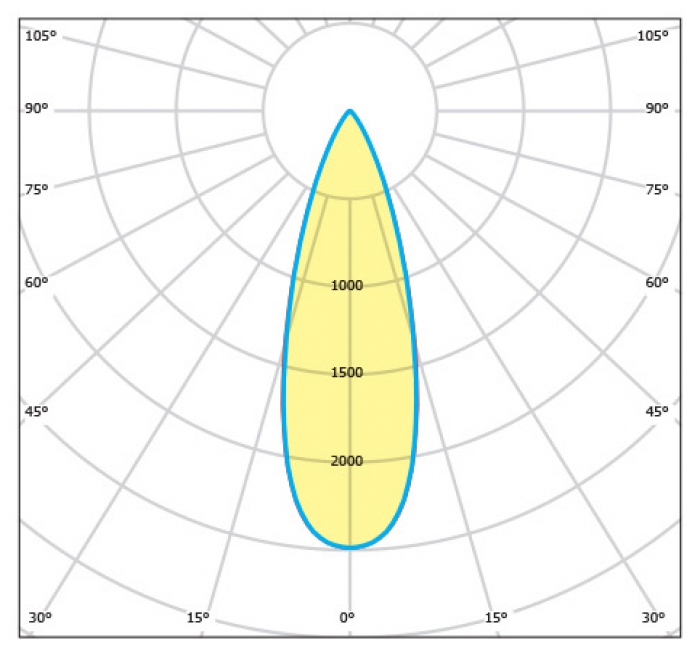

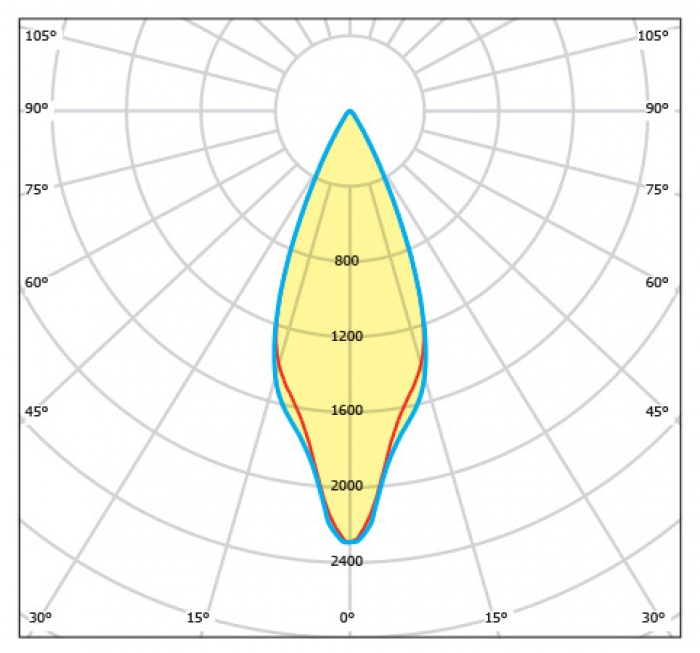

LIGHT CURVES
25°
45°
60°
