WALLWASHERS / VEGA RGBW(A)
VEGA RGBW(A)
APPLICATION
LED high-performance wallwashers with wide & narrow beam light distribution.
PRODUCT DESCRIPTION
LED wall washing fixture with intelligent
white and color light.
Fixture made of aluminium alloy,
Aluminium and stainless steel.
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 95°
Mounting bracket made of plastic.
Lens angle 8°- 25°- 45°- 60°- 10°x45°
Colour standard . Mat anodizied
optional RAL codes.
LED power supply unit
Input 110 – 240V AC 50 / 60 Hz
Power factor > 90% full load
DMX 512 controllable.
Safety class I
Protection class IP66
Impact strenght IK08
Operation temperature -25°C / +55°C
Wind catching area: 0,14 m²
Complies with European standards
EN 60598 and CE certificate.

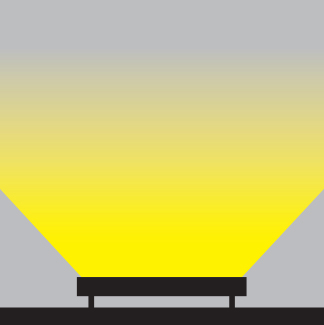

- Conformity mark.LIGHT DISTRIBUTION

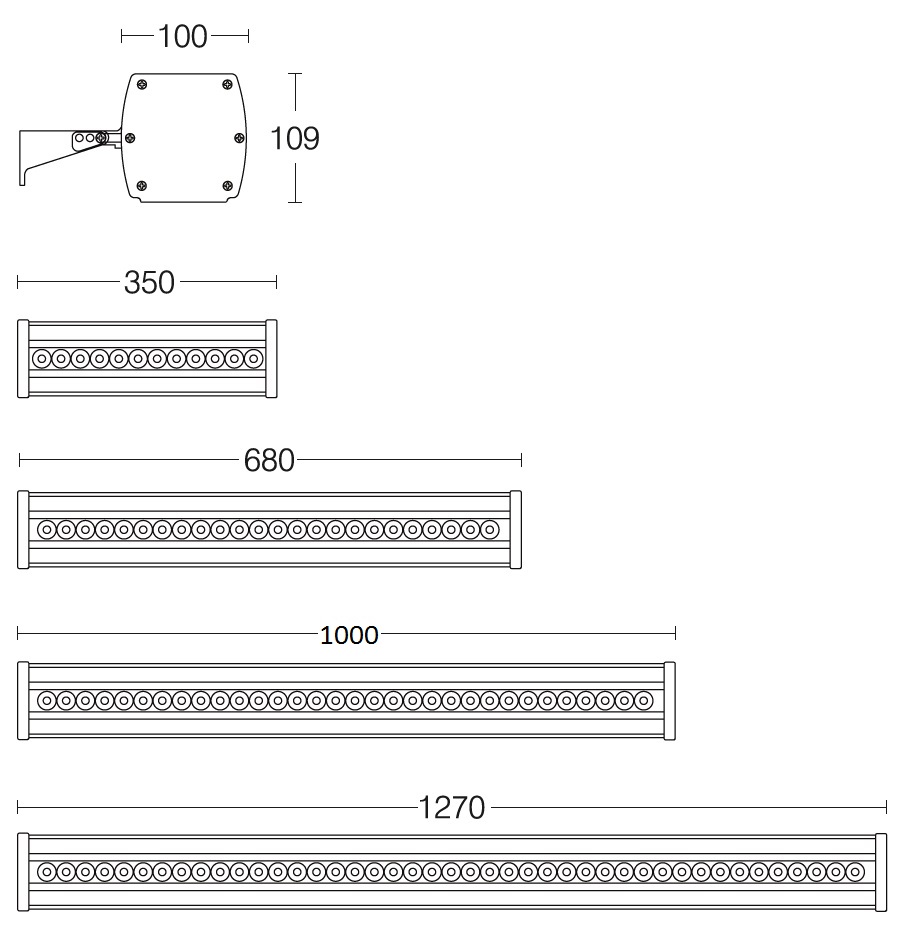

TECHNICAL DRAWING
PURCHASE ORDER TABLE
CODE
POWER
COLOR TEMPERATURE
01-02-35-12-XX-RGBW(A)
12W
RGBW(A)
01-02-35-24-XX-RGBW(A)
24W
RGBW(A)
01-02-70-24-XX-RGBW(A)
24W
RGBW(A)
01-02-70-48-XX-RGBW(A)
48W
RGBW(A)
01-02-100-36-XX-RGBW(A)
36W
RGBW(A)
01-02-100-72-XX-RGBW(A)
72W
RGBW(A)
01-02-130-48-XX-RGBW(A)
48W
RGBW(A)
01-02-130-96-XX-RGBW(A)
96W
RGBW(A)
XX: Lens Angle
LIGHT CURVES
8°
25°
45°
60°
