WALLWASHERS / NOVA 95

NOVA 95 NOVA 95

APPLICATION
LED high-performance wallwashers with wide & narrow beam light distribution.

PRODUCT DESCRIPTION
Wallwasher made of aluminium extrusion,
Aluminium and stainless steel.
Clear 5mm safety glass
Silicon rubber gasket
Swivel range 95°
Mounting bracket made of plastic.
Lens angle 8°- 25°- 45°- 60°- 10°x45°
Colour standard : Mat anodizied
Optional RAL codes.
LED power supply unit
Input 198 – 264V AC 50 / 60 Hz
Power factor > 90% full load
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class I
Protection class IP66
Impact strenght IK09
Operation temperature -25°C / +55°C
Wind catching area: 0,08 m²
Weight: 3,07 kg
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
-- Conformity mark.

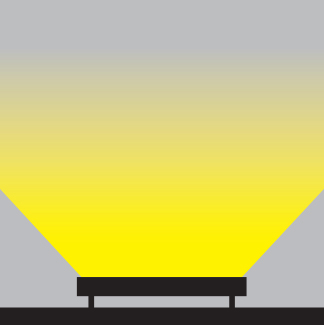

LIGHT DISTRIBUTION
NOVA 95

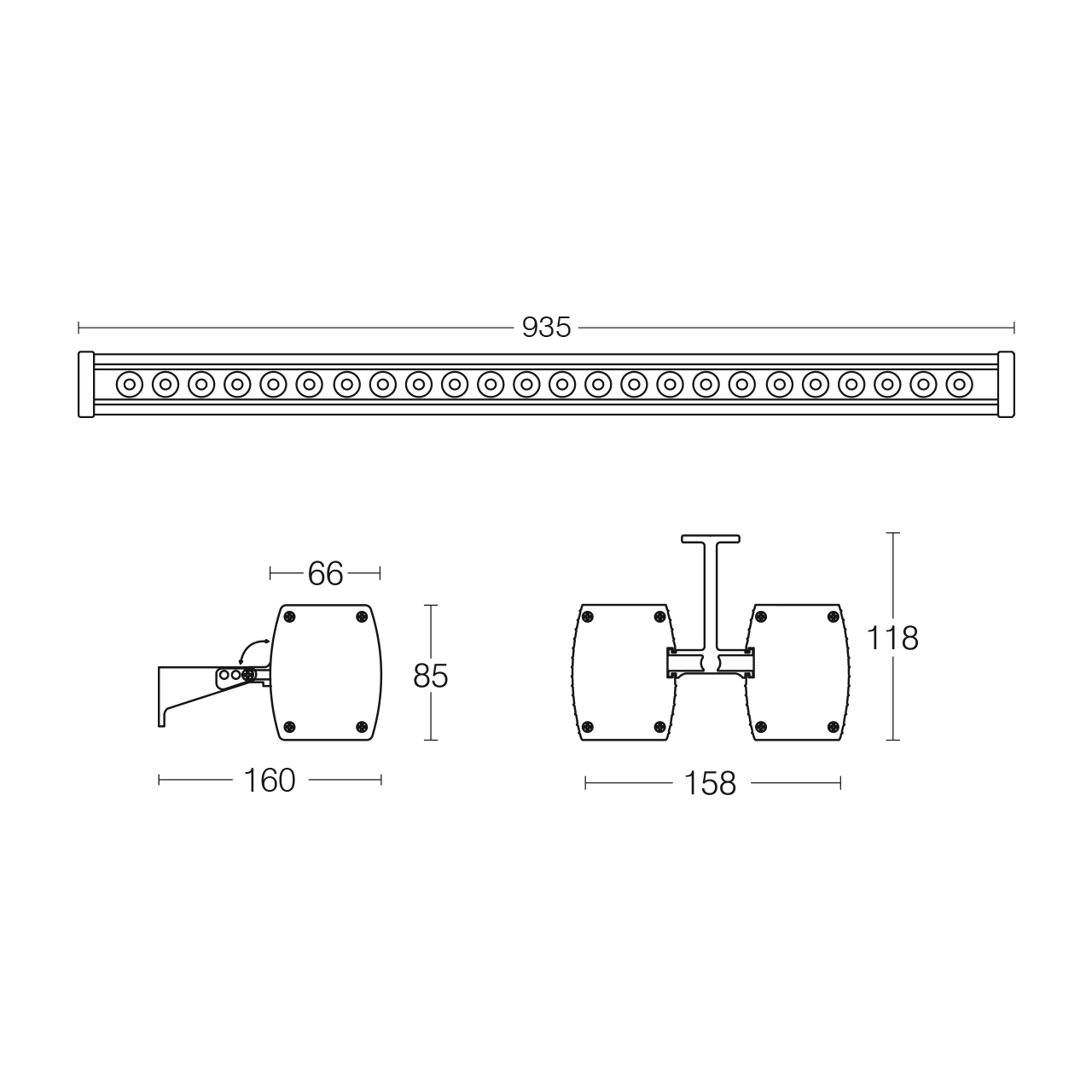

TECHNICAL DRAWING
DOWNLOADS
DATA SHEETS
CATALOG PAGES
LDT FILE(S)
TECHNICAL DRAWING (AUTOCAD FILE)
TEST REPORTS
MANUAL SHEETS
APPLICATIONS
PURCHASE ORDER TABLE
CODE
POWER
LUMINAIRE LUMINOUS FLUX
COLOR TEMPERATURE

01-001-095-024-XX-X
24W
3342lm - 3517lm
3000K-4000K

XX: Lens Angle, X: Led Color
Standart colour temperature 4000K, also available with 6500K upon request.

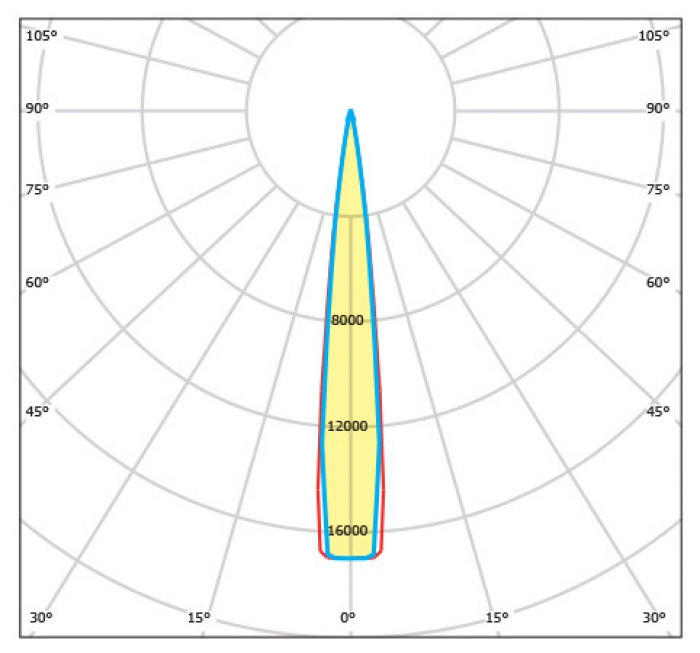

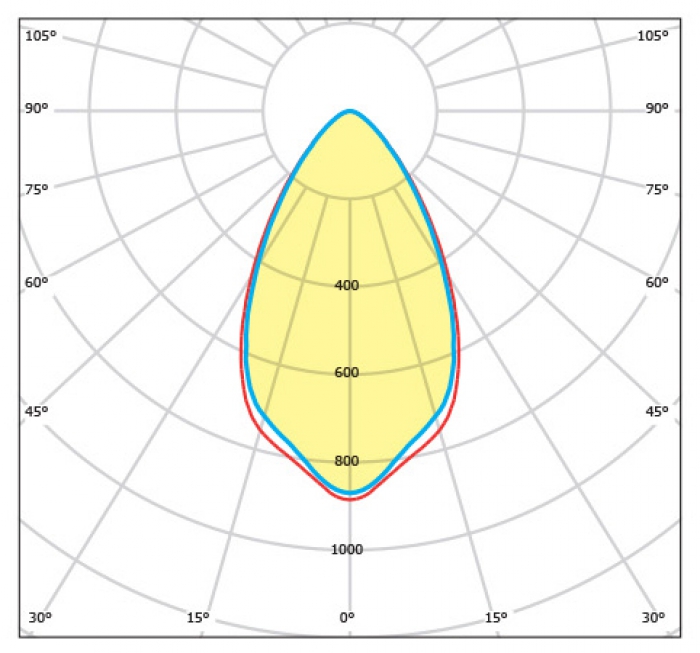

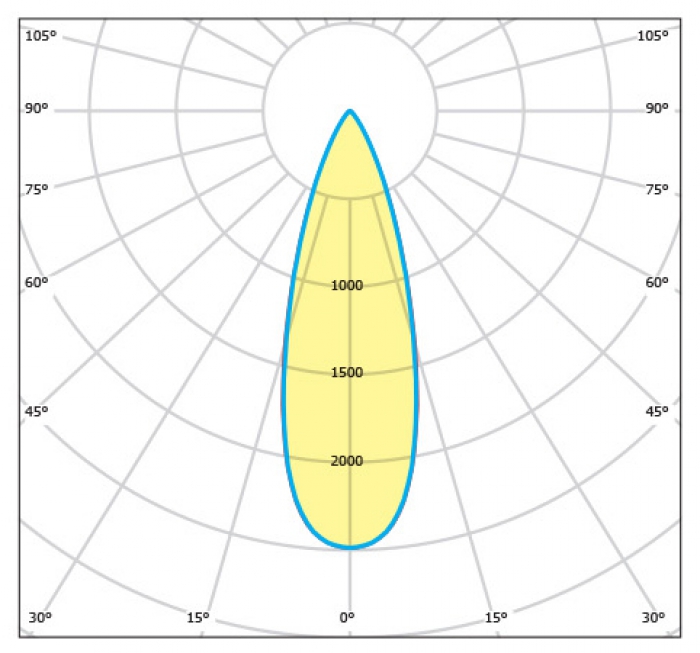

LIGHT CURVES
25°
45°
60°
ROHS NO UV NO IR LONG LIFE LED IP66 IK09 Geri Dönüşüm Energy Saver Dekoratif Damla CO2 Class I Çekiç CE
